روغن سوخت 15 کیلووات روغن سه فاز سانتریفیوژ ماشین تصفیه روغن زباله

کیفیت خوب سانتریفیوژ سانتریفیوژ برای فروش
In the process of production,you were hotness to invite me to visit your factory.If i have any other requirements in the future,i will buy again.

—— Mr.Hussain

We have been using your machine, everything is fine.No matter in quality or after-sales,You all do well.

—— Mr. Mustafa Kamal

It is my pleasure to find you the trustworthy enterprise.Your equipment is very good, I think we can keep cooperation.

—— Mr.Neculcea

چت IM آنلاین در حال حاضر

روغن سوخت 15 کیلووات روغن سه فاز سانتریفیوژ ماشین تصفیه روغن زباله

چین روغن سوخت 15 کیلووات روغن سه فاز سانتریفیوژ ماشین تصفیه روغن زباله تامین کننده
روغن سوخت 15 کیلووات روغن سه فاز سانتریفیوژ ماشین تصفیه روغن زباله تامین کننده روغن سوخت 15 کیلووات روغن سه فاز سانتریفیوژ ماشین تصفیه روغن زباله تامین کننده

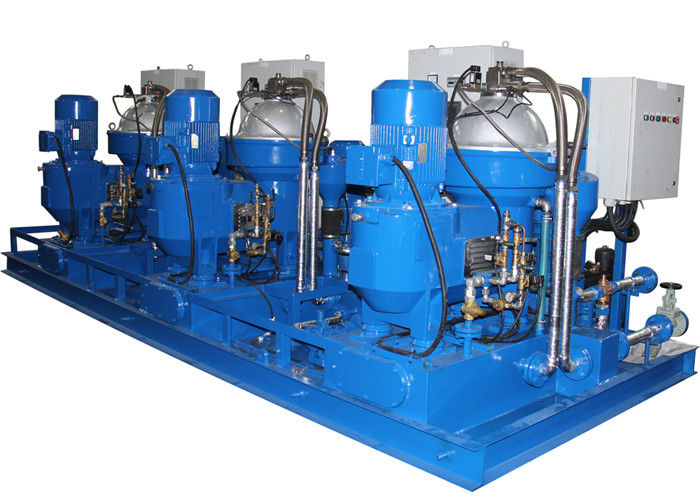

تصویر بزرگ :  روغن سوخت 15 کیلووات روغن سه فاز سانتریفیوژ ماشین تصفیه روغن زباله

جزئیات محصول:

Place of Origin: China
نام تجاری: Peony
گواهی: CCS, ISO
Model Number: PDSD14000

پرداخت:

Minimum Order Quantity: 1
Packaging Details: Standard export packing
Delivery Time: 45days
Payment Terms: TT, LC
Supply Ability: 100sets per month
Contact Now
توضیحات محصول جزئیات
شرح: دیفرانسیل دیفرانسیل مجزا نرم افزار: DO، FO، LO، درمان روغن زباله
واحد ماشین معادل به: MOPX-213 مصرف برق: 15 کیلو
ساختار: ارقام نوع تخلیه: تخلیه متغیر
نام تجاری: Peony

China Product 3 Phase Centrifuge Waste Oil Purification Machine Fuel Oil Centrifuge



Description:



Model PDSD14000 is module type, which is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station, so as to reduce wear of the diesel engine and other machine, and prolong engine life.

The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.

The machine adopts automatic control, and has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.
The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.
The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.
The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.



Advantages:



1. Moisture sensor(No-gravity ring) technology is adopted to ensure the quality of the oil after separation.
2. Our separator is with low power consumption and light weight, which is in accordance with the requirements of the national industry.
3. High rotating speed ensure the best separation effect.
4. The new type seamless belt drive(No second tensioning required) brings more reliable structure and more simplified mechanical structure.
5. Bowl with full hydraulic structure brings more thorough slage discharge, more stable and reliable performance.



Main Technical Specification:



Discharging type

Variable discharging
Ratedcapacity L/h 14000(0# diesel oil)
Rotating speed RPM 7800
Output pressure of clear oil Mpa ≤0.2
Output pressure of sewage Mpa ≤0.3
Motor power Kw 22
Full volume of the slag cavity L 2



Other oil capacity reference chart:



Oil types

Fuel oil

Lubrication oil

Fuel oil

Heavy fuel oil

SAE30, 40

Detergence oil

Steam turbine oil

Kinematical viscosity(mm2/s)

1.9-5.5

5.5-24

120

180

380

100-120

61.2-74.8

40°C

50°C

40°C

40°C

Density/(kg/m3)(20°C)

< 900

900-991

880-900

< 900

Separating temperature

(°C)

normal temperature, 40-60 best

90-98

80-95

Recommended capcity

(l/h)

17500

14000

7700-8400

6300-7000

4900-5600

7000-8400

3500-4200

11200-11900

Note: Reserve the right to change specifications without prior notification.



More pictures:



روغن سوخت 15 کیلووات روغن سه فاز سانتریفیوژ ماشین تصفیه روغن زباله

روغن سوخت 15 کیلووات روغن سه فاز سانتریفیوژ ماشین تصفیه روغن زباله

Guarantee:


Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
